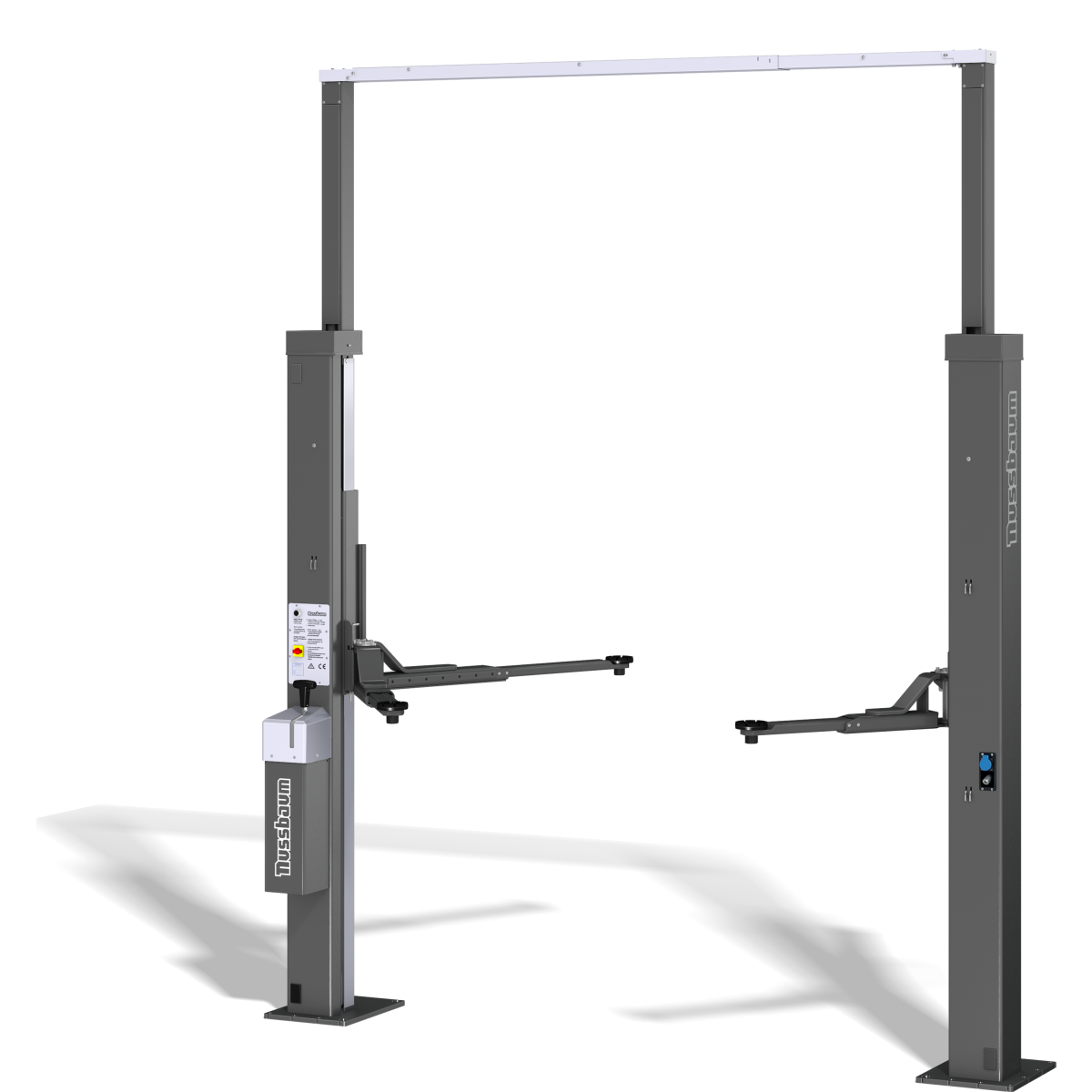

Power Lift HF 3S 3500 SC

Hydraulic 2-post lift with triple safety system and extra flat sportscar arms

Power Lift HF 3S 3500 SC

Código No:HLNTK235.0000150D-7016
Power Lift HF 3S 3500 SC

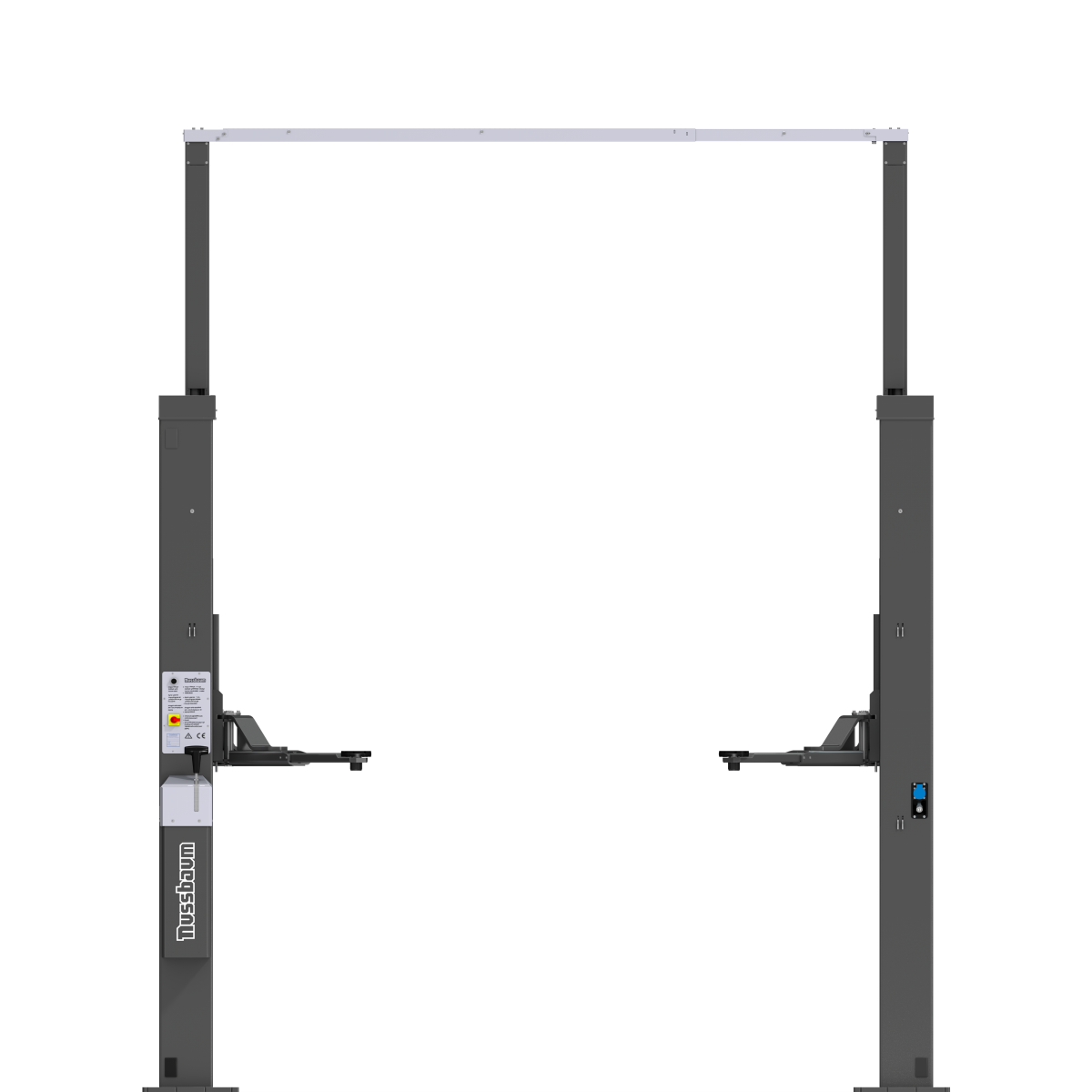

NB HF 3S 3500 SC f NB g

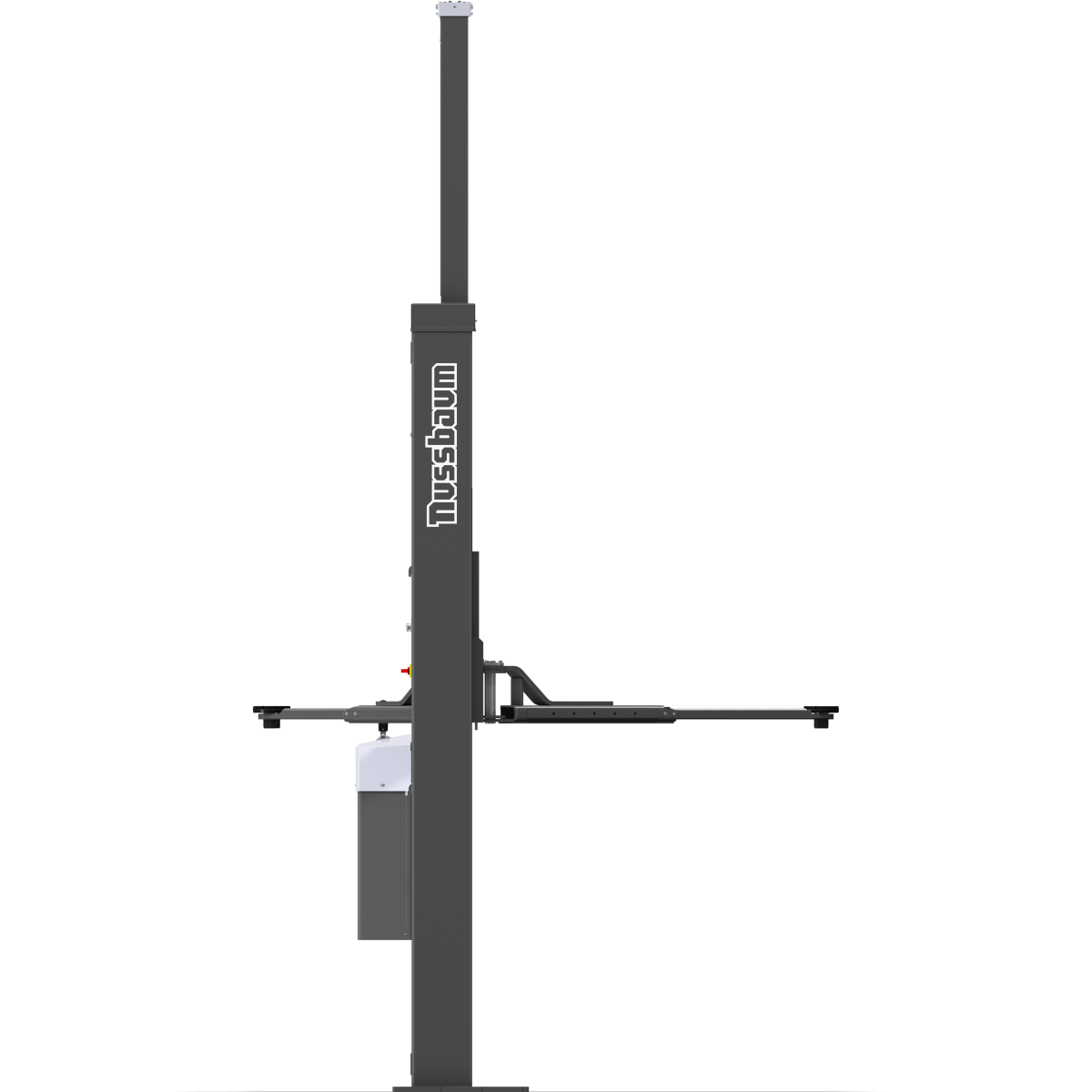

NB HF 3S 3500 SC s NB g
Personalizado cotejar
Breve descripción
Código No: HLNTK235.0000150D-7016
Capacidad elevación: 3500 kg
Tipo 2 post lift
Color Grey

Power Lift HF 3S 3500 SC

The hydraulic 2-post lift Power Lift HF 3S 3500 SC with a load capacity of 3500 kg and extraflat, asymmetrical Sportscar arms is the ideal lift for the demanding automotive workshop, where even very low vehicles can be lifted? The Power Lift HF 3S 3500 SC is The world's only lift with triple safety system. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance.

The extraflat arms with a pickup height of only [Unterschwenkhöhe] mm glide under all low-level vehicles.

The Power Lift HF 3S 3500 SC is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies ausgestattet and is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg .

  • Lifting time: 23 seconds / Lowering time [AttributeShortCode,attribute=Lowering time,attributeid=62] seconds
  • Load capacity: 3500 kg
  • Triple safety: Two redundant hydraulic circuits plus Automatic safety latch (no clacking during lifting and lowering)
  • Extra-flat SC arms with a lower swivel height of only [Unterschwenkhöhe] mm
  • Adjustable in width and height (with optional column extension)
  • Compressed air connection and 220 V socket integrated in column
  • High quality: Every power unit and every hydraulic cylinder is tested before shipment
  • Developed and manufactured in Germany

The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort anbieten. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety.

The Power Lift HF 3S 3500 SC is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations. Their base frame-free design, adjustable in width and height, enables a wide range of installation combinations and variants:  Mit a minimum height of [AttributeShortCode,attribute=Erforderliche Deckenhöhe,attributeid=77] mm and thanks to the optional riser pipe extensions the Power Lift HF 3S 3500 SC can be used both in workshops with low ceiling heights and to lift the underbody of high vehicles such as vans and vans to the ideal working height for you.

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. The low power consumption, the consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs, also thanks to the reduced number of moving parts, reduce running costs. The pump unit integrated in a sound-absorbing metal housing is mounted on the control column and easily accessible for maintenance work. A compressed air connection and a 220 V socket are integrated in the slave column. The arms and columns are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently Grey powder-coated. Your lift is thus protected against dirt and weather in the long term.

The design and the processing of the Power Lift HF 3S 3500 SC give it an elegant overall appearance, which also allows your workshop to appear in the best light in direct customer contact.

How does the Nussbaum safety catch differ from conventional safety systems?

During the lifting process, the Nussbaum safety latch automatically secures the vehicle at intervals of 100 mm up to the maximum lifting height of 1935 mm. The safety switch attached to the control column allows the lift to be additionally placed manually in the latch. In contrast to conventional 2-post lifts, the safety latch does not make any clicking noise during lifting and lowering, which is typical for this type of lifts. The vehicle can be lowered immediately after release of the latch, without first having to be lifted upwards out of the latch.

Envío

Hebebühne mit asymmetrischen, teleskopierbaren Tragarmen, vier im Tragarm fixierte Drehteller, Energie-Set: E-Set (230 V/ Druckluft) in der Bediensäule integriert

Instalación

Fundamentstärke 200mm C20/25 normale Bewehrung, 16 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set, Hydrauliköl HLP32 ca. 10l, Entladung

Detalles
Capacidad 3500 kg
RAL color RAL 7016
Recubrimiento
Ancho recomendado instalación 3350 mm
Altura de recogida min 81 mm
Altura de recogida max 120 mm
Altura de recogida min 81 - 120 mm
Largo min. brazo delantero 590 - 865 mm
Largo min. brazo trasero 840 - 1380 mm
Distancia libre entre columnas min. 2562 - 2762 mm
Sistema Sincronización
Altura Columna 4040 mm
Altura elevación 1935 mm
Ancho instalación min. 3150 - 3350 mm
Ancho total min 3150 - 3350 mm
Tiempo ascenso 23 sec
Tiempo descenso 14 sec
Altura de paso min 4040 - 4909 mm
Ancho de paso min 2562 - 2762 mm
Ancho de paso entre columnas min 2562 - 2762 mm
Ancho de paso entre columnas con los carros de elevación min 2320 - 2520 mm
Altura total min 4040 mm
Dispositivo de recogida
Oil quantity (approx.) 13 liter
Alimentación eléctrica (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Potencia Motor 3 KW
Protección Fusible
Longitud cimentación 1600 mm
Ancho cimentación 3750 mm
Grossor cimentación 200 mm
Calidad cemento C20/25
Noise level (<=) 70 db
Número arancel aduanero tafífa 84254100

Ficha técnica

Datenblatt 245 KB

Planos

Fundamentplan 48 KB
Blockfundamentplan 55 KB

Modelos de elevación

Aufnahmematrix 577 KB

Libro de Inspección

POWER LIFT HF3S 2xx NT K V10 DE EN FR ES IT 26 MB

Catálogos

Power Lift HF 3S Prospetto - Italiano 2.5 MB
Power Lift HF 3S Broschüre - Deutsch 2.5 MB
Power Lift HF 3S Brochure - English 2.5 MB
Power Lift HF 3S Panfleto - Español 2.5 MB
Power Lift HF 3S Brochure - Français 2.5 MB
1
Embalaje
Dimensiones producto 4120mm x 800mm x 600mm
Peso Total 700kg
Apilable 3 veces
