Power Lift HF 3S 5000 DG

The hydraulic 2-post lift Power Lift HF 3S 5000 DG with a load capacity of 5000 kg and double-jointed arms is the only lift in the world with a triple safety system. It is also the ideal lift for the demanding automotive workshop serving all vehicle types, from short small cars to heavy SUVs to long wheelbase vans and vans. With the very fast lifting and lowering times, minimal maintenance (no synchronous cables, no rollers) and the automatic safety lock, it is the ideal lift for daily continuous use in a garage where flexibility and reactivity are required. With the symmetrical telescopic double-jointed arms you can lift a wide range of vehicle sizes and weight classes from Smart/BMW Mini to Mercedes-Benz Sprinter and VW Crafter with a long wheelbase.

The Power Lift HF 3S 5000 DG is equipped as standard with the patented Nussbaum technologies NT and HyperFlow® and has been developed and manufactured by Nussbaum since its market launch in 2014 in Kehl-Bodersweier in Baden-Württemberg.

  • Lifting time: 31 seconds / Lowering time 15 seconds
  • Capacity: 5000 kg
  • Double-jointed arms reach the mounting points of various vehicle sizes
  • Adjustable in width and height (with optional riser pipe extension)
  • Compressed air connection and 220 V socket integrated in column
  • High quality: Every power unit and every hydraulic cylinder is tested before shipment.
  • Developed and manufactured in Germany

The HF 3S series is the result of over 40 years of experience in the manufacturing and development of high-quality automotive lifts Made in Germany. With specially developed in-house technologies, we are the world's only lift manufacturer able to offer you a precise, variable lowering speed and perfect synchronisation without manual maintenance. The ergonomic continuously variable operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in no time at all, all with maximum safety. The main switch attached to the control column can also be secured with a padlock. The Power Lift HF 3S 5000 DG is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations. Its base frame-free design, which can be adjusted in terms of installation width and height, enables a wide variety of installation combinations and variants:  With a minimum height of 4020 mm and a maximum height of 2055 mm thanks to the optional riser pipe extensions, the Power Lift HF 3S 5000 DG can be used both in workshops with low ceiling heights and to lift high vehicles such as vans and trucks to the ideal working height for you.

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little power. The low power consumption, the constant automatic compensation of the hydraulic circuits by the HyperFlow® system and the low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The submerged oil motor is mounted on the control column and is easily accessible for maintenance. A compressed air connection and a 220 V socket are integrated into the control column. The arms and columns are welded in Nussbaum's own state-of-the-art welding machines, shot-peened and then powder-coated . Your lift is thus protected against dirt and weather in the long term.

The design and workmanship of the Power Lift HF 3S 5000 DG give your lift an elegant overall appearance, which also allows your workshop to appear in the best light in direct customer contact.

How does the Nussbaum safety lock differ from conventional safety systems?

The Nussbaum safety lock automatically secures the vehicle during the lifting process at intervals of 100 mm up to the maximum lifting height of 2055 mm. The safety lock attached to the control column allows the lift to be manually lowered into the lock. In contrast to conventional 2-post lifts with safety locks, the safety lock does not make any clicking noise during lifting and lowering, which is typical for this type of lift. The vehicle can be lowered immediately after release of the handle without having to be lifted upwards out of the lock.

Envío

Hebebühne mit Unterölaggregat an der Hubsäule, Steuerung mittels Commander Hebel, Hubsäulenverlängerung variabel einstellbar, Universal bzw. Doppelgelenktragarme, im Tragarm gesteckte Teleskopdrehteller, CE-STOP bei DG Ausführung

Instalación

Fundamentstärke von min. 250mm mit Qualität min. C20/25, 14 Dübel BM16-25/100/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Hydrauliköl HLP 32 ca. 10l[newline marker]Entladung

Detalles
Capacidad 5000 kg
RAL color RAL 7016
Recubrimiento
Ancho recomendado instalación 3750 mm
Altura de recogida min 120 mm
Altura de recogida max 195 mm
Altura de recogida min 120 - 195 mm
Altura elevación max. 2055 mm
Distancia libre entre columnas min. 2977 - 3177 mm
Sistema Sincronización
Altura Columna 4020 mm
Ancho instalación min. 3650 - 3850 mm
Ancho total min 3925 - 4450 mm
Tiempo ascenso 31 sec
Tiempo descenso 15 sec
Altura de paso min 3963 - 4824 mm
Ancho de paso min 2690 - 2890 mm
Ancho de paso entre columnas min 2977 - 3177 mm
Ancho de paso entre columnas con los carros de elevación min 2690 - 2890 mm
Altura total min 4020 - 4880 mm
Dispositivo de recogida
Oil quantity (approx.) 10 liter
Alimentación eléctrica (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Potencia Motor 3 KW
Protección Fusible
Longitud cimentación 1650 mm
Ancho cimentación 4300 mm
Grossor cimentación 250 mm
Calidad cemento C20/25
Noise level (<=) 70 db
Número arancel aduanero tafífa 84254100

Ficha técnica

Datenblatt 177 KB

Planos

Blockfundamentplan 55 KB

Modelos de elevación

Aufnahmematrix 176 KB

Libro de Inspección

POWER LIFT HF 3S 5000 DE EN FR ES IT 21 MB

Catálogos

Power Lift HF 3S 5000 Prospetto - Italiano 1.7 MB
Power Lift HF 3S 5000 Broschüre - Deutsch 1.7 MB
Power Lift HF 3S 5000 Brochure - English 1.7 MB
Power Lift HF 3S 5000 Panfleto - Español 1.7 MB
Nussbaum POWER LIFT HF 3S 5000 FR WEB 1.7 MB
1
Embalaje
Dimensiones producto 4300mm x 1150mm x 920mm
Peso Total 1470kg
Apilable
Listenansicht Explosionsansicht

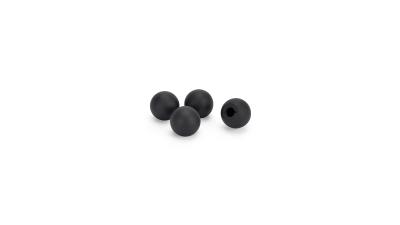

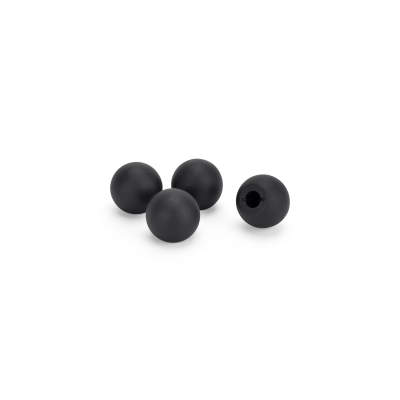

Ball knob for striking GN 319-KT-32-B10-M Código No: 970233 Artículo de sustitución: 250HDL48119
Check valve RVE06 S 2 bar Installation: G1/4 Código No: 983700
inmediatamente disponible
Circuit breaker A 105/3.0200-EV-SO Código No: 990403
inmediatamente disponible
Contactor DC24V / 5,7KW / 400V [27] Código No: 990842
inmediatamente disponible
Elastomer support Drm. 125x24 mm Código No: 901103031
inmediatamente disponible

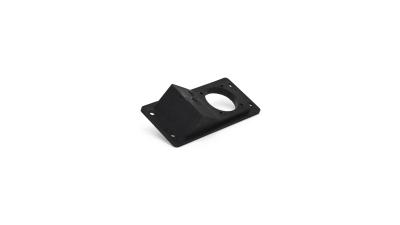

Energieset Kunststoff 70X50X150 Código No: 225SL05093
Stock Bajo
Fuse holder for E-Set incl. fine fuse 5x20 mm 6,3A Código No: 9232SL393024
inmediatamente disponible

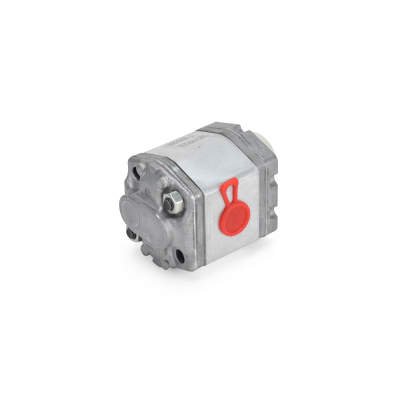

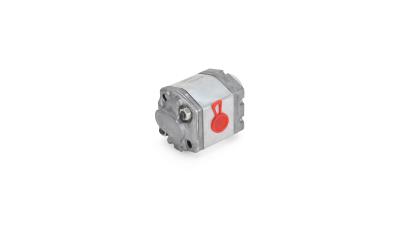

gear pump 1BK7S4,2 Q 2,7 cm³ Código No: 980340
Stock Bajo
Kopfschutz Rd. 68x40 PA 6.6 schwarz Código No: 250HDL48028
inmediatamente disponible

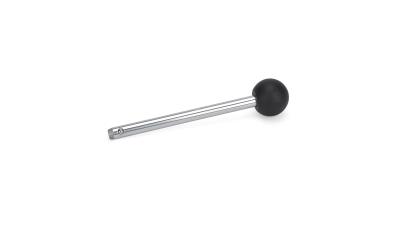

Locking pin complete Código No: 250HDL48119
Plazo de entrega a petición
Nozzle 15-010/L 10 RB A3C Código No: 980014
Plazo de entrega a petición
Piston guide ring GP6500500-T47-050x05,6x02,5x146,9 Código No: 980277
inmediatamente disponible

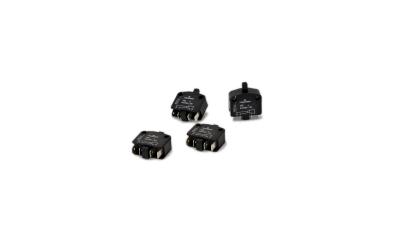

Push button 1115.0101 Código No: 990322
inmediatamente disponible

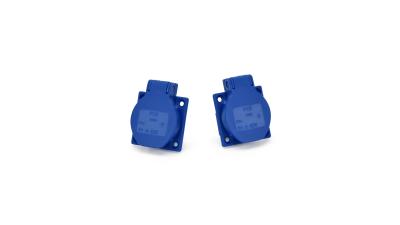

Schuko socket outlet blue 10/16A 230V IP54 Código No: 990646
inmediatamente disponible

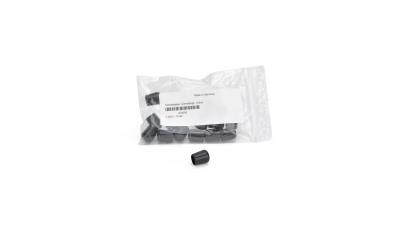

Schutzkappe f.Ziehstange 10mm Código No: 970008
inmediatamente disponible
Submersible motor UO7K2-371 3,00 kW 3 Ph. 230/400V 50Hz 2pol. Código No: 992658
inmediatamente disponible
Telescopic support plate Código No: 235TTKAS08055
Plazo de entrega a petición
Zylinder Folgeseite 1854 mm Hub Komplett Código No: 230HL22351-ET
Plazo de entrega a petición
Zylinder Kommandoseite 1854 mm Hub Komplett Código No: 230HL22301-ET
Plazo de entrega a petición
1
Adapter set for transporter (Trapo) adjustable 180 - 286 mm, set = 4 pieces. Código No: 250SL08130S
Adjustable top set 115-220 mm, set = 4 pieces. Código No: 235TTKAS08501
Adjustable top set 231-330 mm, set = 4 pieces. Código No: 235TTKAS08809
Attachment set for MB 100, adjustable 150-255 mm, set = 4 pieces. Código No: 235TTKAS08537
Attachment set for Sprinter (NCV3) with fixing pin for front attachment points, adjustable 230-335 mm, set = 2 pieces. Código No: 235TTKAS08870
Attachment set for Sprinter (NCV3) with prism for rear mounting points, adjustable 225-330 mm, set = 2 pieces. Código No: 235TTKAS08850
