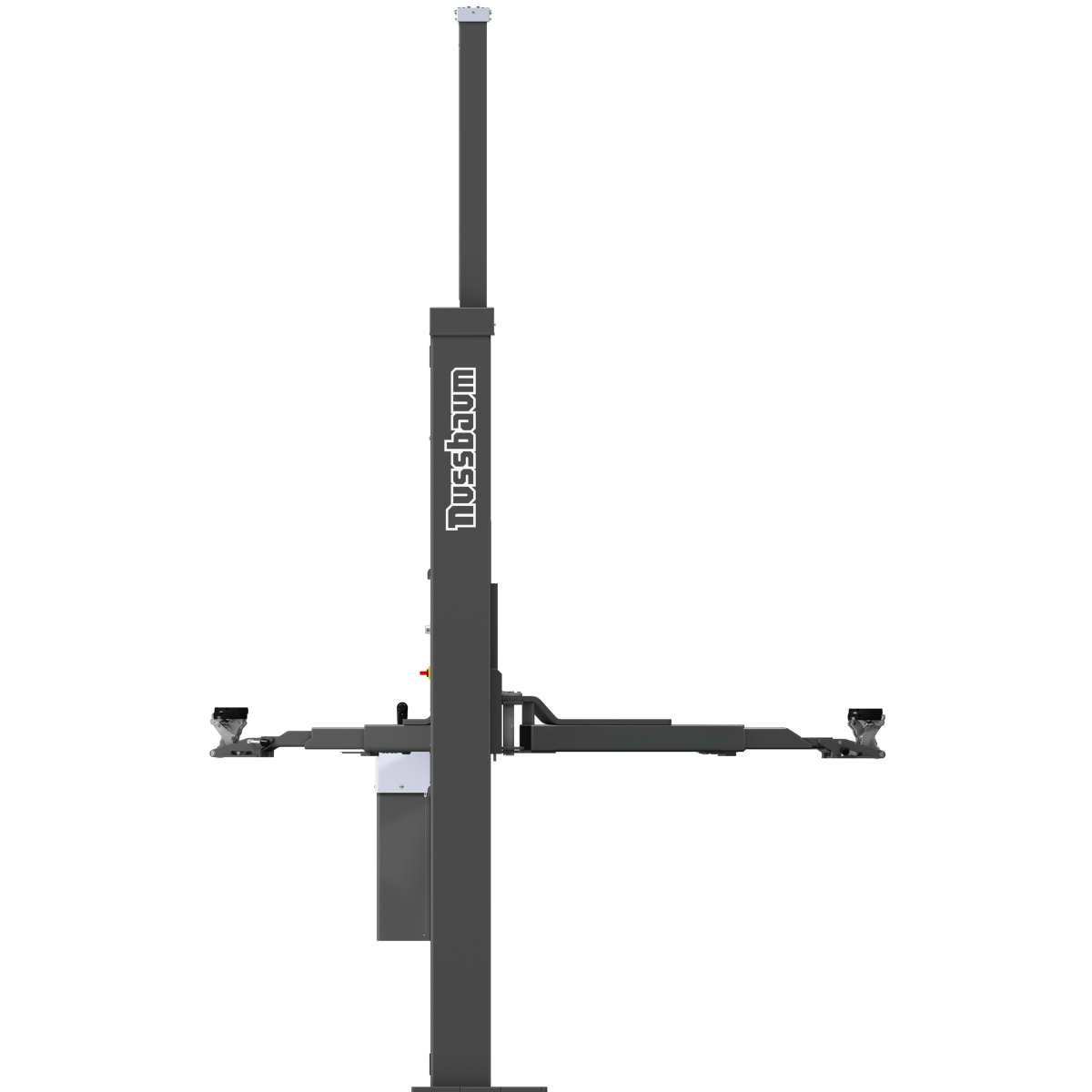

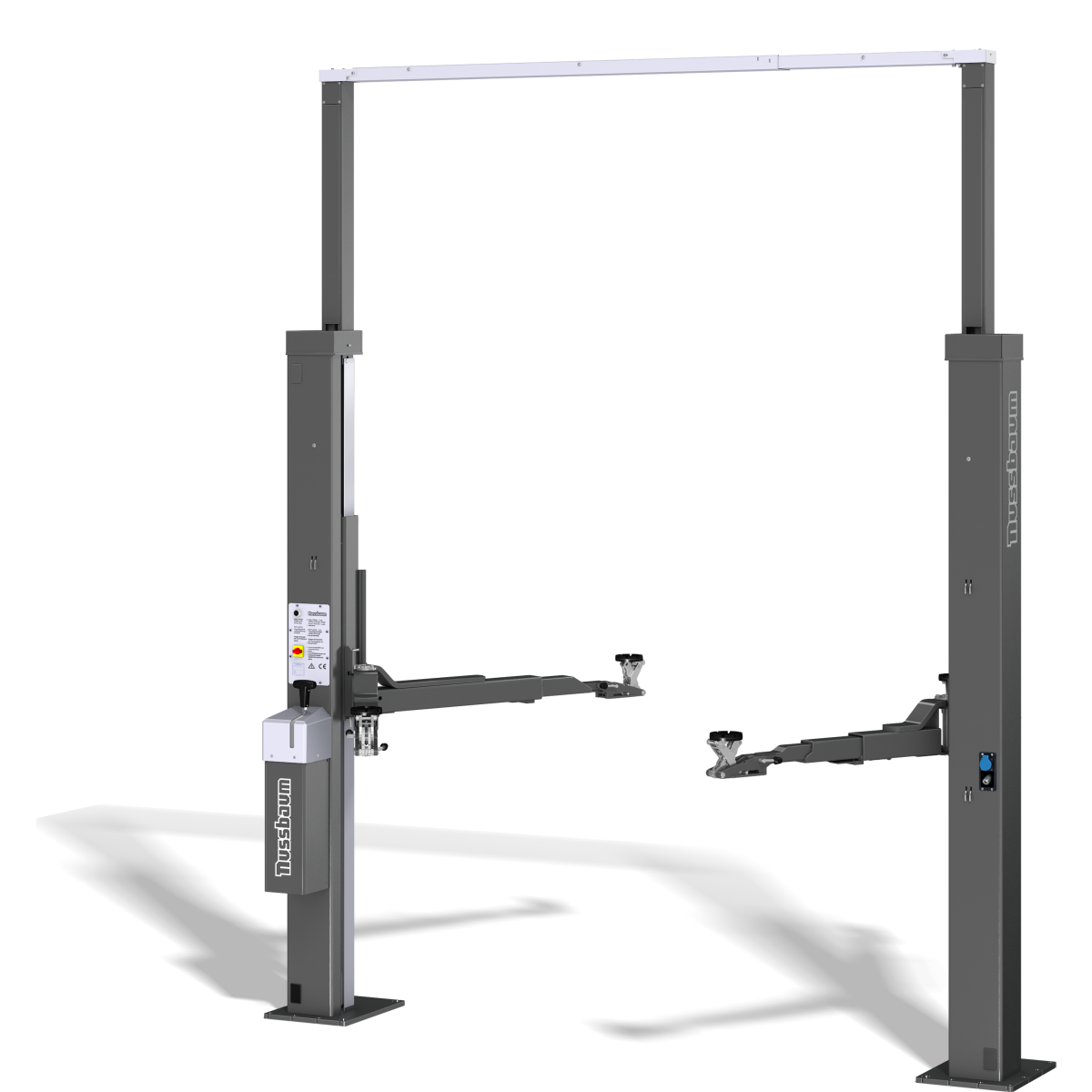

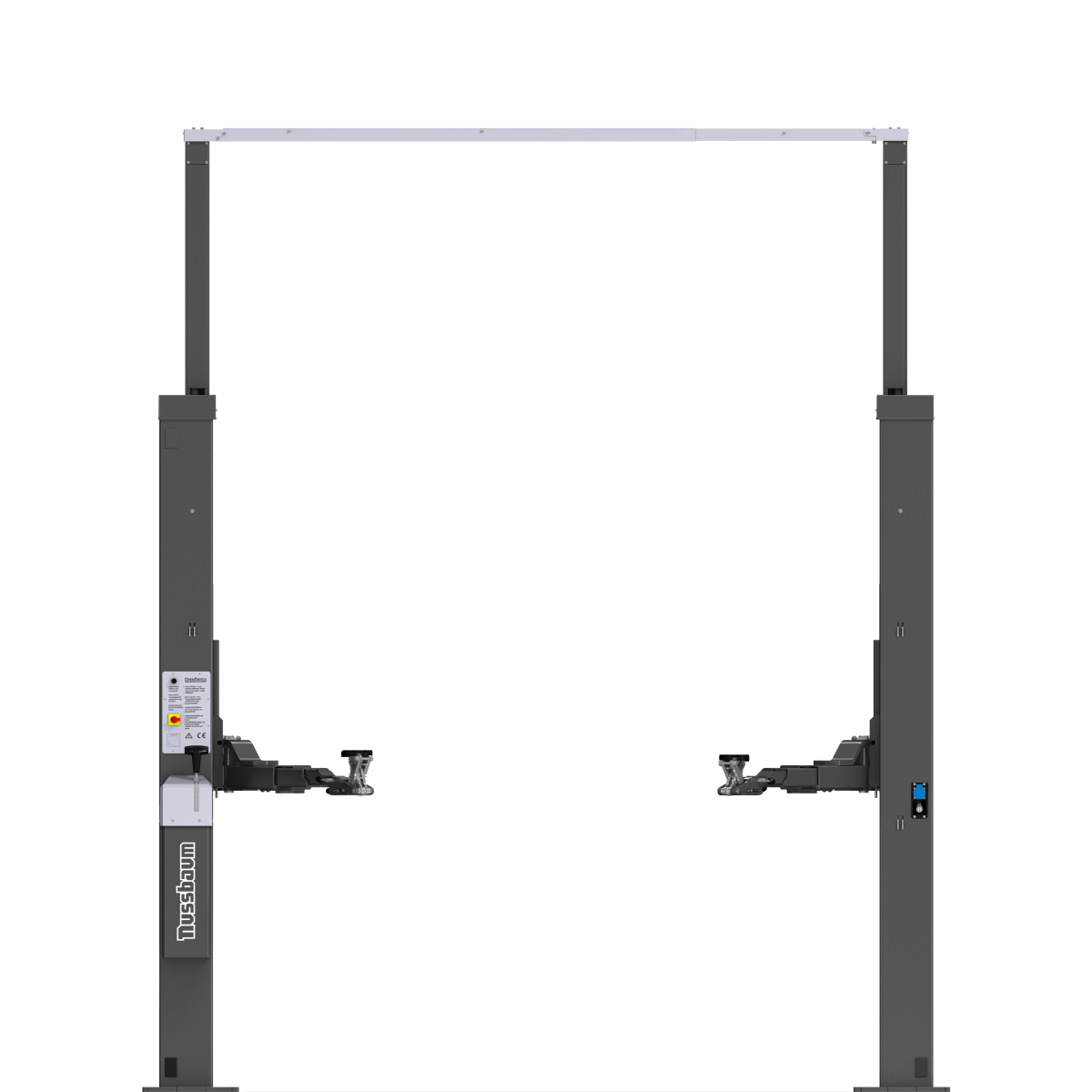

Power Lift HF 3S 3500 MM

The hydraulic 2-post lift Power Lift HF 3S 3500 MM with a load capacity of kg and asymmetrical Mini Max arms, the world's only lift with a triple safety system. The Power Lift HF 3S 3500 MM is the ideal lift for daily continuous use in a consistently busy garage where only the best is good enough. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance.

The Mini Max support plates allow easy access to the pick-up points of lowered vehicles, vehicles with deep-drawn side skirts or off-road vehicles.. The support plates can be conveniently raised to the subfloor by foot after swivelling in.
The Power Lift HF 3S 3500 MM is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies ausgestattet and is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg .

• Lifting time: seconds / Lowering time [AttributeShortCode,attribute=Lowering time,attributeid=62] seconds
• Load capacity: kg
• Triple safety: Two redundant hydraulic circuits plus Automatic safety latch (no clacking during lifting and lowering)
• Height-adjustable Mini Max arms with simple foot control
• Adjustable in width and height (with optional column extension)
• Compressed air connection and 220 V socket integrated in column
• High quality: Every power unit and every hydraulic cylinder is tested before shipment
  Developed and manufactured in Germany

The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort anbieten. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety.

The Power Lift HF 3S 3500 MM is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations.Their base frame-free design, adjustable in width and height, enables a wide range of installation combinations and variants:  With a minimum height of [AttributeShortCode,attribute=Erforderliche Deckenhöhe,attributeid=77] mm and thanks to the optional riser pipe extensions the Power Lift HF 3S 3500 MM can be used both in workshops with low ceiling heights and to lift the underbody of high vehicles such as vans and vans to the ideal working height for you.

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. The low power consumption, the consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs, also thanks to the reduced number of moving parts, reduce running costs. The pump unit integrated in a sound-absorbing metal housing is mounted on the control column and easily accessible for maintenance work. A compressed air connection and a 220 V socket are integrated in the slave column. The arms and columns are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently powder-coated. Your lift is thus protected against dirt and weather in the long term.

The design and the processing of the Power Lift HF 3S 3500 MM give it an elegant overall appearance, which also allows your workshop to appear in the best light in direct customer contact.

How does the Nussbaum safety catch differ from conventional safety systems?

During the lifting process, the Nussbaum safety latch automatically secures the vehicle at intervals of 100 mm up to the maximum lifting height of mm. The safety switch attached to the control column allows the lift to be additionally placed manually in the latch. In contrast to conventional 2-post lifts, the safety latch does not make any clicking noise during lifting and lowering, which is typical for this type of lifts. The vehicle can be lowered immediately after release of the latch, without first having to be lifted upwards out of the latch.

Envío

Hebebühne mit asymmetrischen, teleskopierbaren Tragarmen, vier im Tragarm fixierte Drehteller, Energie-Set: E-Set (230 V/ Druckluft) in der Bediensäule integriert

Instalación

Fundamentstärke 200mm C20/25 normale Bewehrung, 16 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set, Hydrauliköl HLP32 ca. 10l, Entladung
